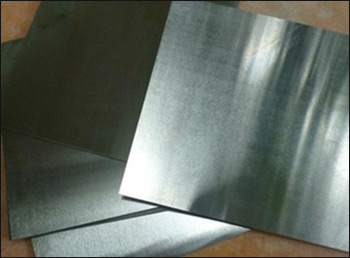

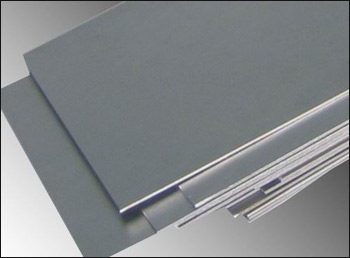

The Molybdenum Sheets and Plates are Manufacturing and Fabricated by using Top most advanced and Latest techniques and superior grade material. The Molybdenum Sheets are widely demanded by several Industrial Verticals for features like robust construction, Highly excellent performance, More reliability, high strength, efficiency, etc. We supply Molybdenum Sheets in various specifications at Cost Effective Price.
Specifications
- Mo : 99.97 Pure Molybdenum sheet
- Thickness : 0.05-130
- Width : 6-900
- Standard : GB ASTM Q/XY
- Application : Electronics, illumination, vacuum plating, medical devices, semiconductor, etc.
- Mo : 99-99.99%.
- Melting point : 2617oc.
- Density : 10.2 g/cm3.
- Standard : GB, ASTMB686-91, Q/XY.
- Thickness : 0.03-130mm.
- Width : 6-900mm.
- Length : As per requirement
- High melting point
- High strength
- Outstanding thermal conductivity
- Excellent resistance to oxidation at high temperatures
- Excellent resistance to electrochemical corrosion
- Used as the steel-making additive
- For producing molybdenum targets
- For producing ion implantation parts
- For rolling molybdenum foil and punching molybdenum discs
- For producing Mo-boats, and heating elements in high temperature furnaces
- For producing electric light source parts and electric vacuum
components
| Thickness (mm) | Thickness Tolerance | Width (mm) | Width Tolerance | Length (mm) | Length Tolerance |
| 0.10~0.30 | ±0.01 | ≤350 | ±2 | ≤1300 | ±5 |
| 0.31~2.00 | ±0.05 | ≤600 | ±5 | ≤1300 | ±5 |
| 2.01~3.00 | ±0.08 | ≤400 | ±3 | ≤1000 | ±5 |
| 3.01~4.00 | ±0.10 | ≤400 | ±3 | ≤1000 | ±5 |
